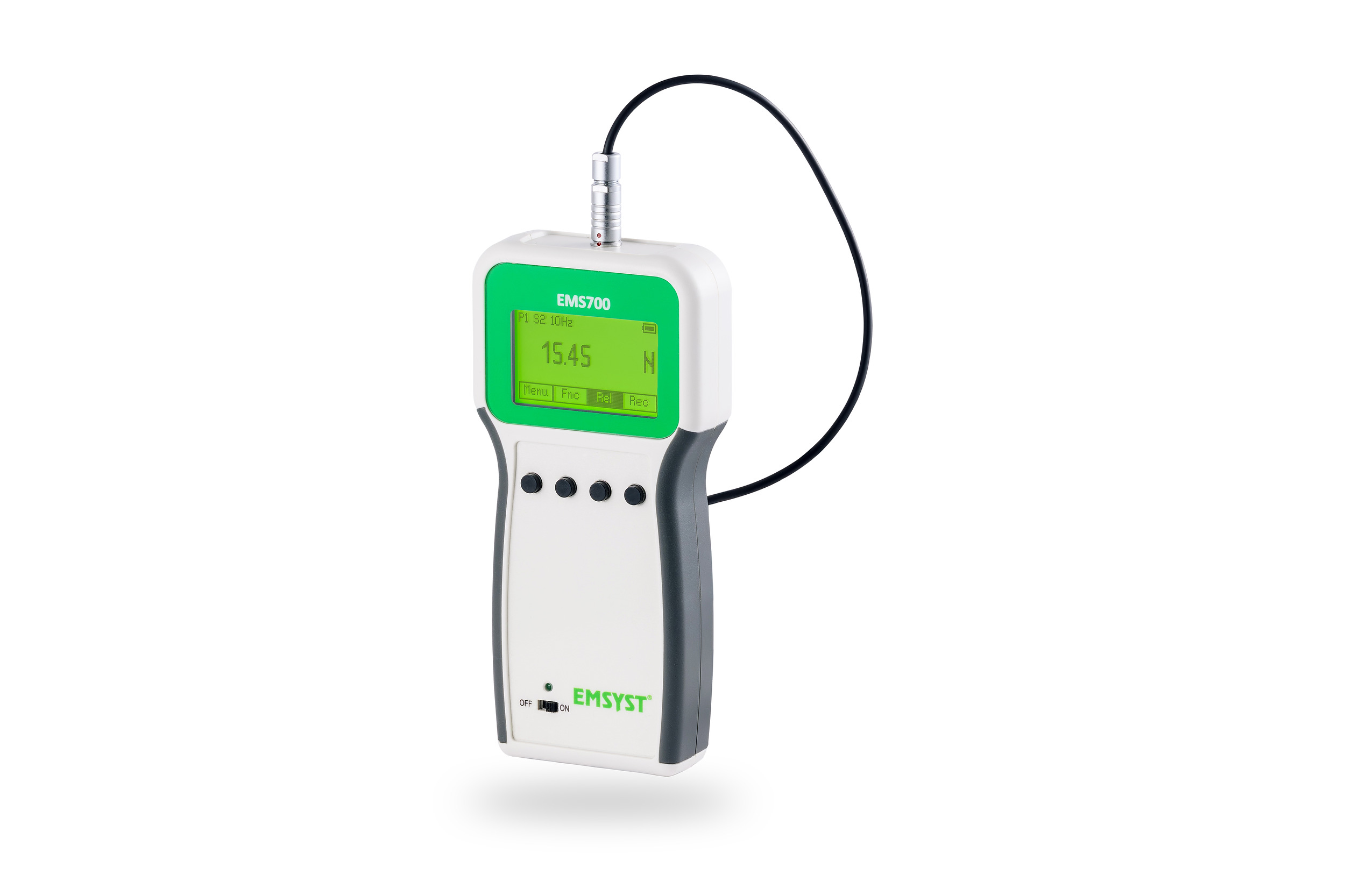

EMS700

Portable display unit for force (weight, torque, pressure) measurement with ability to record data. Communication with PC via USB interface.

EMS700 - SKDownload.pdf
EMS700 - ENDownload.pdf
EMS700 - RUDownload.pdf
EMS700 návod - SKDownload.pdf
EMS700 manual - ENDownload.pdf
EMS700 MS Excel add-in for communicationDownload.rar
Electronic unit
AD converter
- Resolution
- Sampling rate

24 bitov
1 ... 100 SPS
Display
- Accuracy

5 - digit number
(-99999 ... 99999)
Datalogger
- Sampling rate
- Memory capacity

1 ... 1000 SPS
10000 readings
Data transmitter
- Transmit rate

1 ... 10 SPS
Power
- Power source
- ACCU capacity
- Working time
- Charging

ACCU Li-Po
2600 mAh
min. 40 hours
USB
Sensor connection
Type of sensor
Bridge resistance
Sensitivity
Excitation
Sensor connection, type
Num. of sensors for automatic detection
Resistance bridge (tensometer)
min 250 Ω
0.5 ... 7 mV/V
+ 2.5 VDC
LEMO, series F, 7 pin
max 8
PC connection
Type of connection
Type of connector
Baud rate
USB (virtual COM port)
USB-C
9600 ... 115200 Bd
Operating condition and mechanical data
Operating method
Protection
Dimensions
Mass
0 ... +50 °C
IP40
165 x 80 x 28 mm
250g
