ELECTRONIC UNITS AND SIGNAL CONDITIONERS

EMS169

Load Cells Signal Conditioner
Input: Load Cell min. 300 Ω
Outputs:0 ... ± 10 V4 ... 20 mA
0 ... ± 5 V12 ... ± 8 mA
5 ... ± 5 V
Power supply: 24 VDC
Built-in electronic filter, DIN rail mounting.

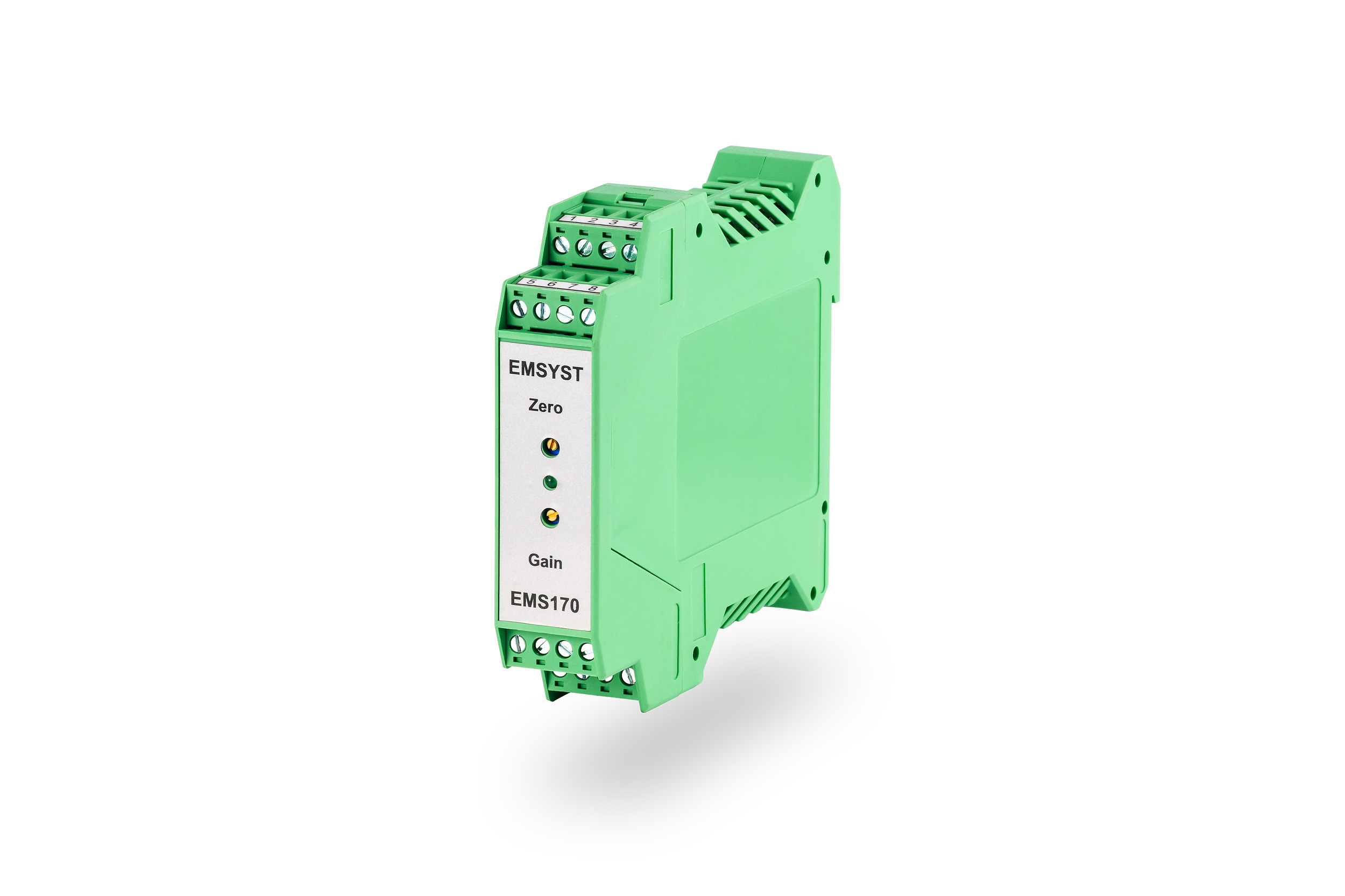

EMS170

Load Cells Signal Conditioner
Input: max. 4 Load Cells
Outputs: 0 ... ± 10 V, 4 ... 20 mA and other
Power Supply: 24 VDC
Adjustable electronic filter, DIN rail mounting.

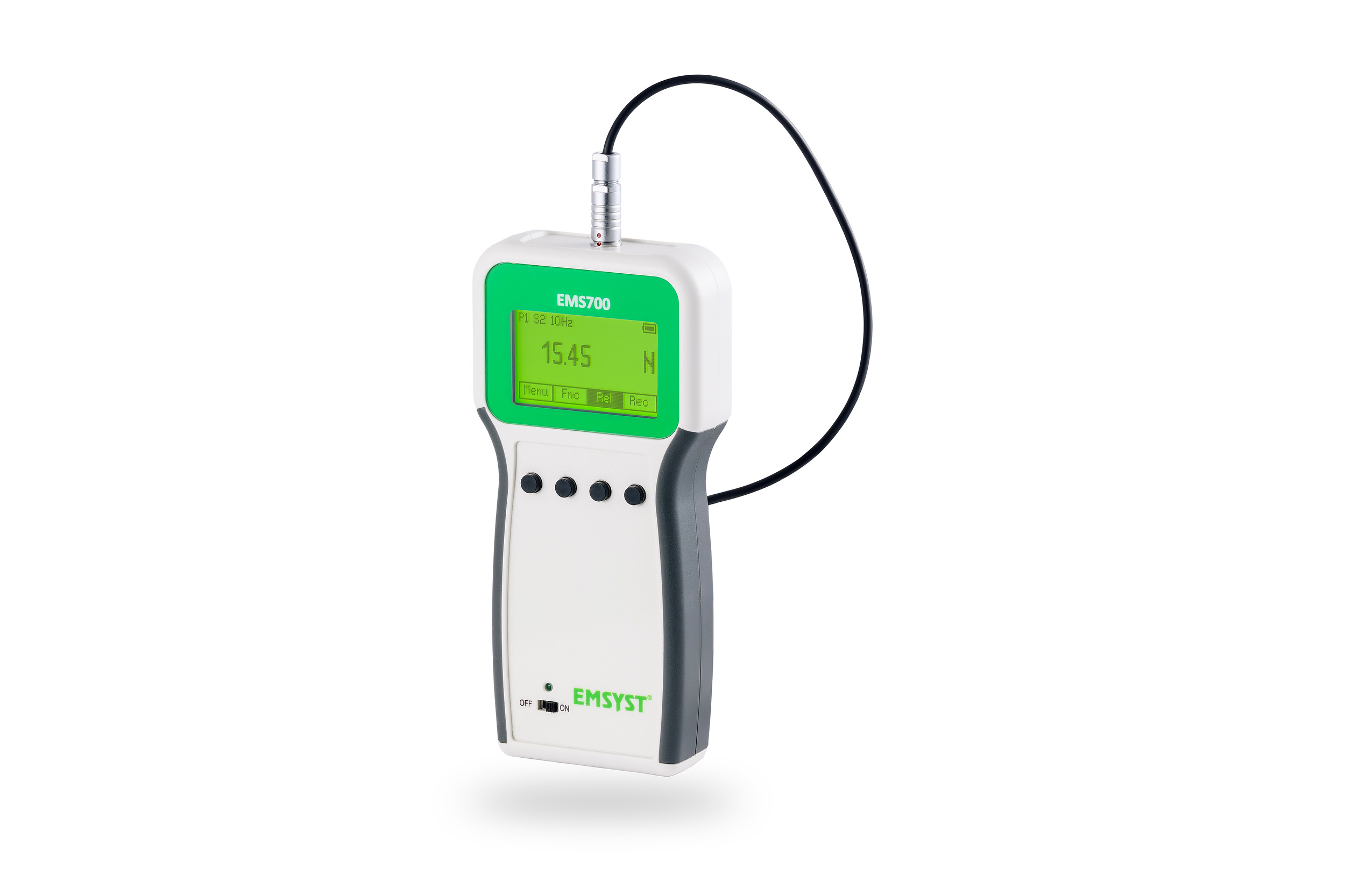

EMS700

Portable display unit for force (weight, torque, pressure) measurement with ability to record data. Communication with PC via USB interface.

MD150T

MD150T indicator is designed to work with a strain gauge force sensors, allowing the measurements with a resolution of up to 0.001% *. The result can be scaled to any unit of force or mass. MD150T is equipped with a USB as well as RS485 Modbus RTU protocol to communicate with the industrial devices such as flat panel HMI or PLC.
