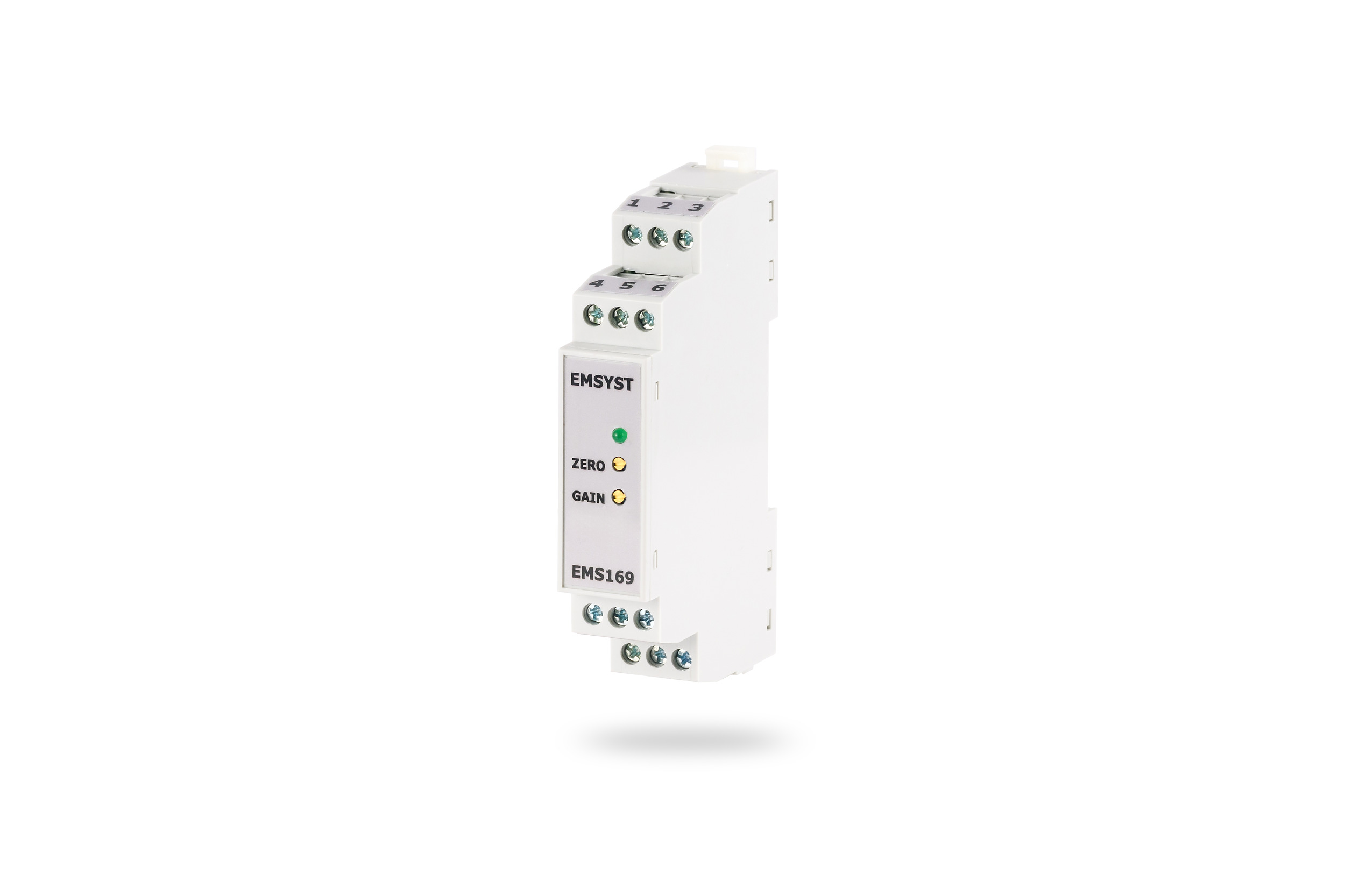

Load Cells Signal Conditioner
Input: Load Cell min. 300 Ω
Outputs: | 0 ... ± 10 V | 4 ... 20 mA |
0 ... ± 5 V | 12 ... ± 8 mA | |
5 ... ± 5 V |
Accuracy class | 0.2 |
Input - Strain gauge sensor (force, pressure, moment), sensitivity |
0.8 ... 2.3 mV/V |
Sensor Excitation - Voltage - Min. sensor impedance |
7 VDC 300 Ω |
Voltage Output - Bipolar - Bipolar "Low" - Bipolar with zero offset - Min. load impedance |
0 ... ± 10 V 0 ... ± 5 V 5 ... ± 5 V 2 kΩ |
Current Output - Unipolar - Bipolar with zero offset - Max. load impedance |
4 ... 20 mA 12 ... ± 8 mA 500 Ω |
Amplifier - Zero adjustment - Input offset voltage drift - Thermal sensitivity drift - Non-linearity |
0 ... ± 2.5 V 100 ppm / °C 1 μV / °C 0.05 % FS |
Butterworth Low Pass Filter 2nd Order - Frequency range "Low" - Frequency range "High" |
20 Hz 1 kHz |
Power supply - Range - Max. current consumption |
24 VDC ± 10 % 50 mA |
Temperature Range - Operating - Storage |
-10 ... +50 °C -40 ... +85 °C |
